What’s ARC line?
Anti Reflective Coating, often known as AR Coating, is a scientific technique for improving the performance of solar cell cover and back sheet glass by lowering reflection and increasing light absorption. Over 30% of the surface of bare silicon is reflective. So, anti-reflection coatings (ARC) and surface texturing both help to reduce reflection.
What’s The Difference Between Single ARC And Double ARC?
NO. |
ITEM |
Singel ARC |
Double ARC |
|---|---|---|---|
|
1 |
coating viscosity(cps@25°) |
2.5 |
Base: 1.8 Surface: 2.5 |
|
2 |
PH |
2 |
Base: 1.5 Surface: 2.5 |
|
3 |
solid content(%) |
4 |
Base: 3.2 Surface: 4.0 |
|
4 |
finishing thickness(nm) |
110~120 |
Base: 95~105 Surface: 110~120 |
|
5 |
light transmittance rate(%) |
94.45%(AM 1.5) ΔT=2.41% |
94.85%(AM 1.5) ΔT=2.81% |
Machine Configurations
Machine Frame
- EU designed exterior with electrostatic spray coating.
- Frame welding by GB100 square tube
- Adopted 28mm thickness 45# steel plate for the main body

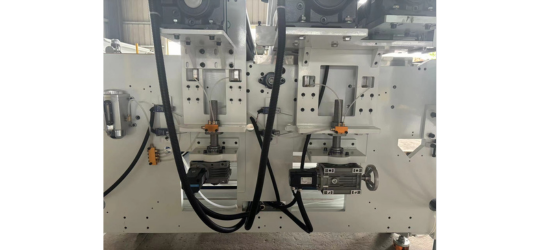

Lifting System
- Equipped with 2 units of precision linear rail systems and TBI ball screws.
- Equipped with AC SERVO device for the pressing roller and application roller.
- The precision between the automatic and manual height adjustment is just 0.1mm.
PLC and electric cabinet system
FAQ
How to start our cooperation?
Please provide the size, thickness of your substrate, along with the coating specifications, etc. with this information, we’ll quickly respond with detailed solutions and quotation.
Do you a trading company or factory?
As the company introduction said, we are well know coating machines manufacturer, whose factory is located in the HuaiNai city, and our R&D center is located in Shenzhen city.
What after-sale support, training and warranty are offered?
Technical assistance and maintenance is included, such as spare parts, software update service.
We will provide training documents and on-site operators training during commissioning.
For a period of 12 months after acceptance warranty of mechanical and electrical function.
We will provide training documents and on-site operators training during commissioning.
For a period of 12 months after acceptance warranty of mechanical and electrical function.
